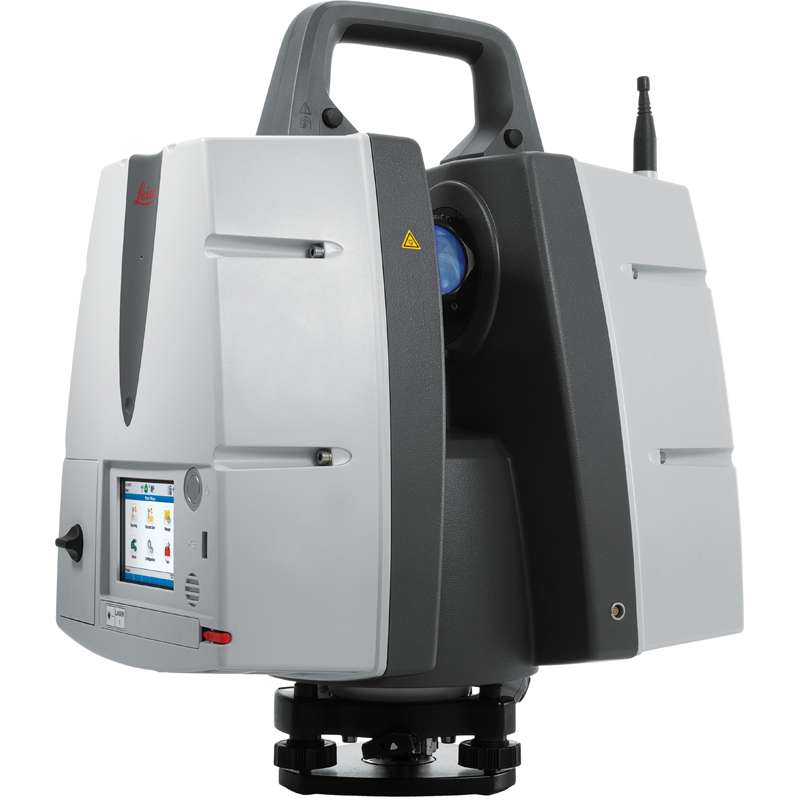

Leica ScanStation P40

The Leica ScanStation P40 offers the highest versatility including long range (up to 885 ft/270m at 34% reflectivity), speed (up to 1 million points per second), and accuracy (3D positional accuracy of 3mm at 50m; 6mm at 100m). Delivering outstanding range, speed and data quality whenever and wherever needed- it’s the perfect solution for any task in 3D laser scanning.

Leica Geosystems 3D laser scanners deliver:

  • Highest quality 3D data and HDR imaging
  • Extremely high speed scan rate of 1 mio points per second
  • Ranges of up to 270 m
  • Low range noise
  • Survey-grade dual-axis compensation
  • Highly detailed 3D colour point clouds mapped in realistic clarity
  • One button scan control
  • Touchscreen control with stylus, full colour VGA graphic display (640×480 pixels)
  • Check & Adjust Field procedure for checking of angular parameters, tilt compensator and range offset
  • On-board target acquisition: target selection from video or scan
  • On-board user interface: switchable from standard to advanced
  • 256GB internal solid-state drive (SSD) or external USB device
  • Dimensions (D×W×H): 238mm × 358mm × 395mm / 9.4″ × 14.1″ × 15.6″
  • Weight: 12.25kg / 27.0lbs, nominal (w/o batteries)
