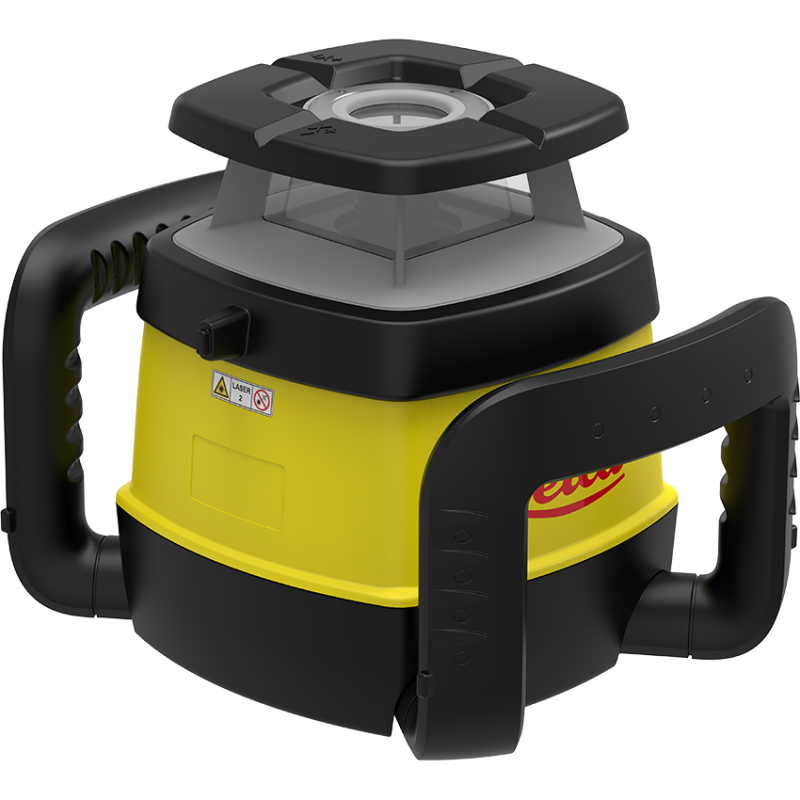

Leica Rugby CLA Laser Level

The Right Choice for Every Application On Site

With the unique capability to adapt to any application needs through software upgrades, the Leica Rugby CLA is the first upgradable laser to maximised productivity and performance on-site. The upgrade options deliver the unmatched performance in any levelling, aligning and squaring tasks, making it a true all-rounder. With additional professional services such as repair and calibration, you can secure your laser’s exceptional performance for many years.



Description

Site preparation
Site preparation
Automated machine control systems for slope and flat work.
Grade checking
Grade checking
Check grades easily and reliably.
Parking areas
Parking areas
Single and dual slopes ensure proper drainage from parking areas.
Parking islands
Parking islands
Set the forms for parking areas to match site requirements.
Slopes for ramps and driveways
Slopes for ramps and driveways
Dial-in or catch slope in single or dual axis.
Formwork verticality
Formwork verticality
Vertical alignment of forms using slope match function.
Set out walls
Set out walls
Align two points and mark position of wall using slope catch function.
Concrete levelling
Concrete levelling
Check concrete level during the pour.
Formwork levelling
Formwork levelling
Set and level concrete forms.
Batter board
Batter board
Align building axes using slope catch function.
Set out drywalls
Set out drywalls
Align two points and mark position of drywall using slope catch function.
Level ceiling
Level ceiling
Check and level suspended ceiling.



Leica Rugby CLH CLA CLI
Warranty 5Y/2Y knockdown 5Y/2Y knockdown 5Y/2Y knockdown
Grade capability* (X/Y Axes) 8% 15% 15%
Self-levelling accuracy** ± 1.5 mm at 30 m
(± 1/16″ at 100 ft)
± 1.5 mm at 30 m
(± 1/16″ at 100 ft)
± 1.5 mm at 30 m
(± 1/16″ at 100 ft)
Self-levelling range ± 6° ± 6° ± 6°
Operating range with Combo, RE 140/160 1350 m diameter 1350 m diameter 1350 m diameter
Remote range 600 m diameter 600 m diameter 600 m diameter
Laser class 1 2 1
Environmental standard IP68/MIL-STD-810G IP68/MIL-STD-810G IP68/MIL-STD-810G
Operating temperature -20 °C to +50 °C
-4 °F to +122°F
-20 °C to +50 °C
-4 °F to +122°F
-20 °C to +50 °C
-4 °F to +122°F
Storage temperature -40 °C to +70 °C
-40 °F to +158 °F
-40 °C to +70 °C
-40 °F to +158 °F
-40 °C to +70 °C
-40 °F to +158 °F
Rotation speed 10, 15, 20 RPS 0, 2, 5, 10, 15, 20 RPS 10, 15, 20 RPS
Batteries (Li-Ion) Li-Ion Li-Ion
Battery operating time** 50 h 50 h 50 h
Battery charging 5 h (full charge)
1 h fast charge = 8 h operating
5 h (full charge)
1 h fast charge = 8 h operating
5 h (full charge)
1 h fast charge = 8 h operating
Dimensions (H × W × D) 230 mm / 9,1 in
296 mm / 11,7 in
212 mm / 8,3 in
230 mm / 9,1 in
296 mm / 11,7 in
212 mm / 8,3 in
230 mm / 9,1 in
296 mm / 11,7 in
212 mm / 8,3 in
Weight with batteries 3.8 Kg / 8,3 lbs 3.9 Kg / 8,5 lbs 3.9 Kg / 8,5 lbs
* Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality.
