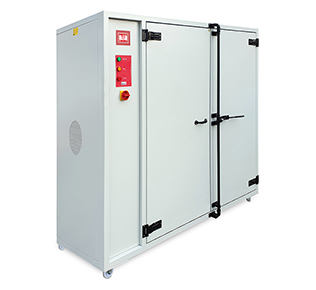

1250 Litre Oven
PRO/1250H/TDIG/
850 Litre Oven
PRO/850V/TDIG
This range of Prime XL Ovens are the flagship brand of Falcon Geomatics has Large Capacity Ovens. These are built to the highest standards and packed with features and enhancements.
As standard, the Prime XL range offers heavy duty stainless steel interior, increased accuracies on our standard models and are quicker responding. Built around a heavy duty panelled framework, we can offer increased load capabilities in the range, multiple reinforced shelves and operate at 300ºC continuously. They feature our latest touch screen control system which offer intuitive control designed for industrial ovens.
Features
- Capacities 250 to 1250 Litres
- 8 Sizes (single door design)
- 9 Sizes (twin door design)
- Temperature Range:
- 50ºC to 250ºC
- On screen historical trending (48hours)
- 8 Stage Profile Control
- Count Down Timer
- 24/7 Real Time Clock Operation
- Manual or Automatic Overheat reset
- High accuracy Pt100A duplex sensors <0.6ºC
- Fan Assisted Circulation
- Excellent Stabilty <+/- 0.8ºC
- Low Chamber Uniformity
- Stainless Steel Chamber
- Audible Warnings
- Quick Responding
- Heavy Duty Castor Wheels on all Models
Options
- 10 Menu x 8 Stage Profile Controller with Cyclic feature
- 300ºC continuous temperature ratings
- Stainless Steel Exterior Body
- Reinforced Shelving (40KG)
- Explosion Relief Panels
- Bespoke Solutions Wvailable Upon request
- Access Ports (25, 50, 75 or 100mm)
- Traceable Calibrations to national standards
- Bespoke Stands and Stacking Kits
- Extractor Unit
- Extended Warranty
- 3 Phase Upgrade for Quicker Response (Standard Above 350L)
Design
The exterior is constructed around a structural frame and finished with powder coated clad panels covering heavy duty insulation. The interior chamber is made from 304 stainless steel and fitted with fixed shelf runners are removable chrome plated wire grid shelves.
The vertical style units are fitted with single doors, the horizontal style units are fitted with twin doors.
Heating
Heated by Incoloy sheathed elements positioned in the side fan duct for all units except the 250H and 350H, which have a base fan duct.
Controls
The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and integral overheat system by using 2 individual Pt100 sensors. Advance features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs.
The control panels are fitted on the side of each unit except the 250H and 350H, which are fitted in the base.
Specifications
Horizontal Style with Twin Doors
|
|||||||
Genlab ref. Number |
Capacity
(litres) |
Internal dims.
(H x W x D cms) |
External dims.
(H x W x D cms) |
No. of
Shelves |
No. shelf
positions
|
Wattage/
Voltages
|
Weight
(kg) |
PRO/250H/TDIG |
220
|
54 x 92 x 44
|
105 x 113 x 68
|
3
|
4
|
3000/230
|
195
|
PRO/350H/TDIG |
320
|
54 x 92 x 64
|
105 x 113 x 88
|
3
|
4
|
3000/230
|
240
|
PRO/425H/TDIG |
450
|
76 x 92 x 64
|
104 x 139 x 88
|
4
|
5
|
4500/415
|
285
|
PRO/500H/TDIG |
535
|
91 x 92 x 64
|
119 x 139 x 88
|
5
|
7
|
4500/415
|
330
|
PRO/650H/TDIG |
645
|
91 x 92 x 77
|
127 x 153 x 101
|
5
|
7
|
7500/415
|
380
|
PRO/750H/TDIG |
750
|
106 x 92 x 77
|
147 x 153 x 101
|
5
|
8
|
7500/415
|
425
|
PRO/850H/TDIG |
865
|
122 x 92 x 77
|
158 x 153 x 101
|
5
|
9
|
7500/415
|
460
|
PRO/1000H/TDIG |
1005
|
142 x 92 x 77
|
178 x 153 x 101
|
5
|
11
|
9000/415
|
530
|
PRO/1250H/TDIG |
1280
|
142 x 122 x 74
|
178 x 183 x 98
|
5
|
11
|
9000/415
|
600
|
Vertical Style with Single Door
|
|||||||
Genlab ref. Number |
Capacity
(litres) |
Internal dims.
(H x W x D cms) |
External dims.
(H x W x D cms) |
No. of
Shelves |
No. shelf
positions |
Wattage/
Voltages
|
Weight
(kg) |
PRO/250V/TDIG |
240
|
91 x 51 x 52
|
118 x 96 x 76
|
5
|
7
|
3000/230
|
185
|
PRO/350V/TDIG |
345
|
91 x 61 x 62
|
118 x 106 x 86
|
5
|
7
|
3000/230
|
230
|
PRO/425V/TDIG |
425
|
91 x 61 x 77
|
119 x 108 x 101
|
5
|
7
|
4500/415
|
275
|
PRO/500V/TDIG |
535
|
114 x 61 x 77
|
142 x 108 x 101
|
5
|
9
|
4500/415
|
320
|
PRO/650V/TDIG |
675
|
114 x 77 x 77
|
150 x 138 x 101
|
5
|
9
|
7500/415
|
370
|
PRO/750V/TDIG |
760
|
128 x 77 x 77
|
165 x 138 x 101
|
5
|
10
|
7500/415
|
415
|
PRO/850V/TDIG |
840
|
142 x 77 x 77
|
178 x 138 x 101
|
5
|
11
|
7500/415
|
450
|
PRO/1000V/TDIG |
1005
|
142 x 77 x 92
|
178 x 138 x 116
|
5
|
11
|
9000/415
|
520
|
Ordering
All units have a stainless steel interior with a touch screen interface with all the timer features enabled as standard.
Where options are required, simply add the option code to the original reference.
E.g. PRO/1250/TDIG with extended temperature range and stainless steel exterior becomes PRO/1250/TDIG/300/SSE
Contact sales for bespoke options.
Option Codes
- 10 Menu x 8 Stage Profile Controller with Cyclic feature - 10PRO
- Extended Temp Range 300ºC - 300
- Stainless Steel Exterior - SSE
- Access Ports - AP
- Explosion Relief Panels - EXP
- Traceable Calibration - SPC
- 3 Point Traceable Calibration - 3PC
- Stands - STAND
- Extractor Systems - EXT
- Extended Warranty - X1
- 3 Phase Upgrade - 3PH
