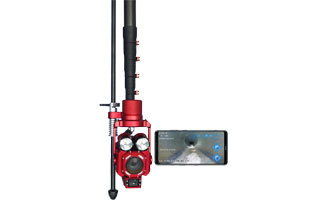

X1-H4 Pipe Periscope
X1-H4 pipeline periscope is mainly used for rapid detection and diagnosis of the internal conditions of industrial vessels or pipelines. Put the camera probe with its own searchlight light source into the pipe mouth or the inside of the industrial container through the operating level. The digital high-definition camera is used with the focus and zoom and pitch adjustment functions to clearly display the structural defects and functionality of the pipe and the container. Defects will be recorded and saved, and the inspection information will be filled in on-site and taken screenshots for interpretation.
X5-HMA CCTV Inspection Robot
X1-H4
Features & Advantages
- Suitable for pipe DN100-2000;
- Working Temperature:-20℃~50℃;
- Image sensor:Color 1/2.8 Progressive scanning CMOS
- Image resolution:PAL. 1920*1080,2.1 megapixel
- Rotation angle:up 35°,down 25°
- Zoom:30x optical,manual or auto focusing;
- luminous sensitivity (minimum illumination): 0.01LX
- Waterproof: IP68;
- Distance-measuring precision: ±0.001mm
- Distance-measuring range: 0.2m~80m;
- Telescopic pole length: standard 8.8m, can customize up to 25m
- Main control: Windows or Android tablet, or Android phone can be used
- Lighting: can move along with camera probe.With main and auxiliary lighting. Main lighting is with2X 10W LED. There are 8X3W LED as auxiliary lighting. Effective irradiation distance is 40-80 meters;

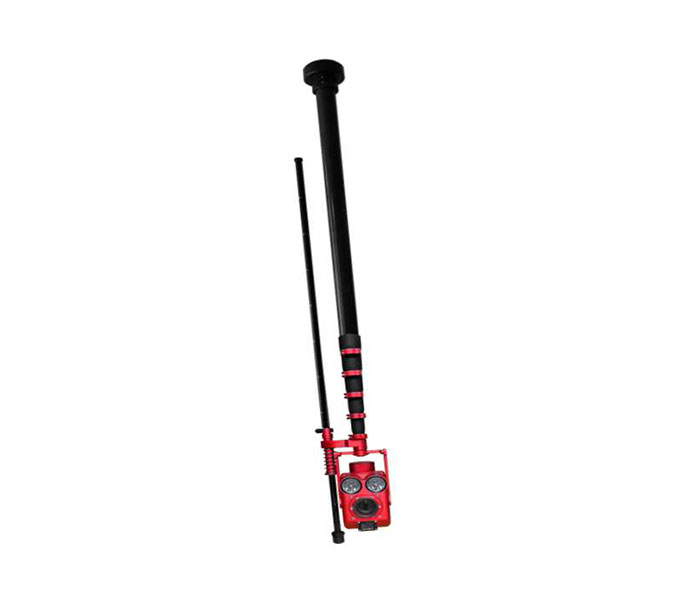

PIPE PERISCOPE DESIGN
