SOUTH NL 32 TOTAL STATION
DESCRIPTION

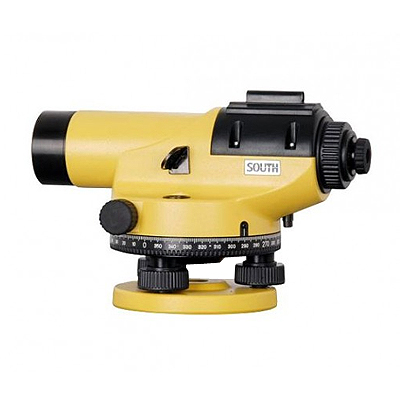

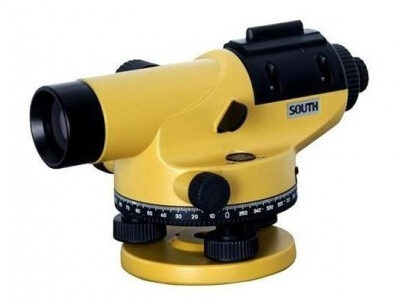

SOUTH NL 32 Auto Level
We have used South NL 32 total station with high performance and accuracy.
We are experience authorized service center in UAE with all total station brands equipment’s.
We are into the industry experience to provide unmatched technical expertise and high quality repairs. All our technicians are trained by the product manufacturer to provide comprehensive product service, calibrations repairs, and services.
SOUTH NL 32 Auto Level is equipment suitable for all surveying and engineering level applications. They are used to obtain accurate levels in surveys. They are designed for accuracy, ease of operation and rugged dependability. They give maximum portability. This is also supplied with aluminum telescopic tripod stand.
MODEL: SOUTH NL 32
PRODUCT CODE: SOUTH NL 32
BRAND NAME: SOUTH
AVAILABILITY: YES
TECHNICAL SOUTH NL 32
- Deviation for 1 km double run leveling: 1.00mm
- Image: Erect
- Magnification: 32X
- Objective Aperture: 38mm
- Field of view: 1.20'
- Min Focus: 0.3mm
- Compensator Range +/- 15'
- Sensitivity of bubble 2 mm
- Excellent shockproof function with patent
- Total sealed structure for use in any weather
- Exclusive closed magnetic field
- Magnetically-damped compensator
- Reflector-type circular vial observation
- 5 Meter Staff & Stand
FEATURES & BENEFITS
- Provided with aluminum telescopic tripod stand.
- They are rigidly constructed and ensure accuracy for years under severe conditions.
- Available in various types of models.
- They are provided with durable Lithium battery that is good for many operations.
- They are provided with durable Lithium battery that is good for many operations.
- They can be set up very easily.
- Includes hard-shell carrying case with dual latches, plumb bob, Allen wrench, adjusting pin, and instruction manual.
- Ensures accurate leveling.
- The equipment has easy adjusting features.
- They are portable.
SPECIFICATIONS
| Auto Level | Magnification | 32x |
| Effective Objective Aperture | 40mm | |
| Image | Erect | |
| Reticle | Cross Reticle | |
| Field of View | 1°20′ (2.3m /100m) | |
| Minimum Focus Distance | 0.3m | |
| Multiplication Constant | 100 | |
| Additive Constant | 0 | |
| Compensator Type | Air Damping | |
| Compensator Range | ±15′ | |
| Compensator Setting Time | ＜3s | |
| Compensator Setting Accuracy | ±0.3″ | |
| Standard 1km Deviation | 1.0mm | |
| Sensitivity of Bubble | 8′ /2mm | |
| Circle Graduation | 360° or 400 gon (Minimum 1°or 1 gon) | |
| Protection Class | IP54 | |
| Working Temperature | -20℃ ～ +50℃ | |
| Storage Temperature | -40℃ ～ +70℃ | |
| Net Weight per Unit | 1.8kg | |
| Package Size (4 PCS/CTN) | 440×320×440mm | |
| Gross Weight (4 PCS/CTN) | 10kg |
