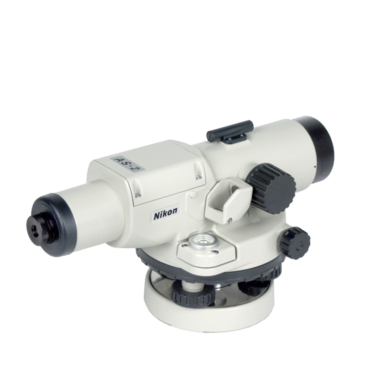

Nikon AS 2C Auto Level

Nikon surveying equipment provides optimal workflow efficiencies using proven technology in a range of mechanical total stations, theodolites and automatic level.

General

Nikon AS 2C Series auto levels feature waterproof, high-power telescopes that help you make precise measurements even in the wettest conditions. They feature a unique automatic air-dampened compensator to prevent magnetic interference, and an endless horizontal fine drive to ensure smooth, precise pointing and angular measurement. AS/AE Series auto levels are easy to set up and easy to use. All four models can attach to both flat- and spherical-head tripods, and the standard optical sight lens helps you find your target quickly, easily and accurately. And a mirror with a pentaprism lets you view the circular bubble as an erect image during setup and sighting.

TELESCOPE

Tube length

10.2 in (259 mm)


erect

Effective aperture of objective

1.77 in (45 mm)

Magnification

34x

Resolution power

2.5″

Field of view

1°20′ (2.3 ft @ 100 ft)

Minimum focusing distance

3.28 ft (1.0 m)

Stadia ratio

1:100

Stadia additive constant

LEVEL VIAL SENSITIVITY

Circular level

10’/2 mm

STANDARD DEVIATION IN 1 KM DOUBLE RUN LEVELING

Without micrometer

±0.8 mm

With micrometer

±0.4 mm

AUTOMATIC COMPENSATOR

Type

wire-hung, air damper

Compensation range

±12′

Setting accuracy

±0.3″

HORIZONTAL CIRCLE (AS-2C only)

Diameter of circle

3.2 in (80 mm)

Minimum increment

1°/1 g

Scale reading (direct)

10’/10 cg

Reading by estimation

1’/1 cg

DIMENSIONS

Instrument (L x W x H)

10.2 x 5.4 x 5.6 in (259 x 136 x 142 mm)

Carrying case (L x W x H)

14.9 x 7.7 x 7.8 in (379 x 195 x 197 mm)

WEIGHT

Instrument

AS-2: 4.0 lb (1.8 kg)
AS-2C: 4.2 lb (1.9 kg)

Carrying case

AS-2: 4.0 lb (1.8 kg)
AS-2C: 4.2 lb (1.9 kg)
