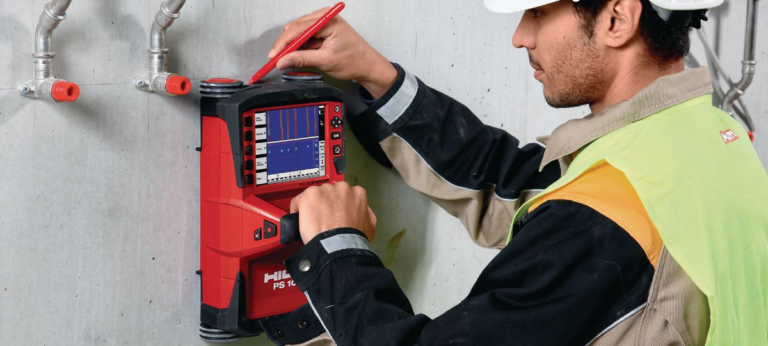

Hilti PS 1000 scanner

The Hilti PS 1000 Concrete Scanner is a professional Ground Penetrating Radar (GPR) system engineered for Efficient concrete inspection and structural analysis. It allows professionals to visualize the internal structure of concrete in real time, helping prevent accidental damage during drilling, coring, cutting, and renovation projects.

Designed for large area scanning, the PS 1000 combines advanced radar technology with intuitive software to deliver high-resolution 2D and 3D imaging of embedded objects within concrete structures.

Key Features

• Real-time Ground Penetrating Radar (GPR) imaging
• High-resolution 2D and 3D visualization of embedded objects
• Three dedicated scanning modes:

  • QuickScan Detection
  • QuickScan Recording
  • ImageScan
• Detects multiple layers within reinforced concrete
• Large integrated display for instant on-site analysis
• Portable all-in-one design for field operations
• Export scan data for detailed analysis and reporting
• Compatible with Hilti PROFIS Detection Software

The Hilti PS 1000 utilizes multiple radar antennas combined with electromagnetic sensing technology to generate detailed subsurface images.

Its advanced visualization system provides:

• Top-view mapping
• Cross-sectional imaging
• Multi-layer visualization
• Real-time object localization
• Automatic object detection
• On-site interpretation without requiring extensive post-processing

The intuitive touchscreen interface allows users to immediately identify reinforcement layouts and concealed utilities before commencing construction work.

Scan Modes

QuickScan Detection

Rapid scanning mode for locating hidden objects before drilling or cutting.

QuickScan Recording

Records scan data for documentation and later review.

ImageScan

Grid-based scanning for producing detailed 2D and 3D images of large concrete areas.
