CONCRETE PRODUCTS​

ALFA has a fundamental commitment to ensuring that all customers receive the highest quality products and services. Our company holds a rigorous quality management system of EN ISO 9001:2008 certificate to ensure that the customer’s requirement are always met.

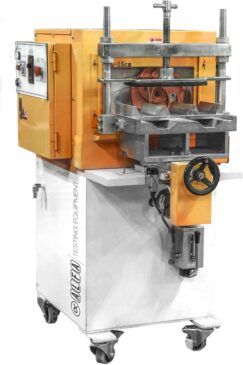

MODEL: AUTOMATIC GRINDING MACHINE (B-199)

TECHNICAL SPECIFICATIONS

  • The ultimate solution to grind the end of cylinder and cube specimens for the laboratories and concrete batch plants who don’t want to deal with capping compounds
  • Can grind the following combinations simultaneously:
  • 3 x (Ø 100 x 200 mm / 4`` x 8``) cylinder specimens
  • 2 x (Ø 150 x 300 mm / 6`` x 12``) cylinder specimens
  • 2 x (150 x 150 x 150 mm) cube specimens
  • Robust body
  • Automatic moving platform
  • Easy locking mechanism
  • Feeding speed up-to 4 mm/min

EQUIPPED WITH:

  • Grinding wheel Ø 200 mm
  • Limit switches
  • Emergency stop
  • Transparent guard
  • Solenoid valve for water inlet control
