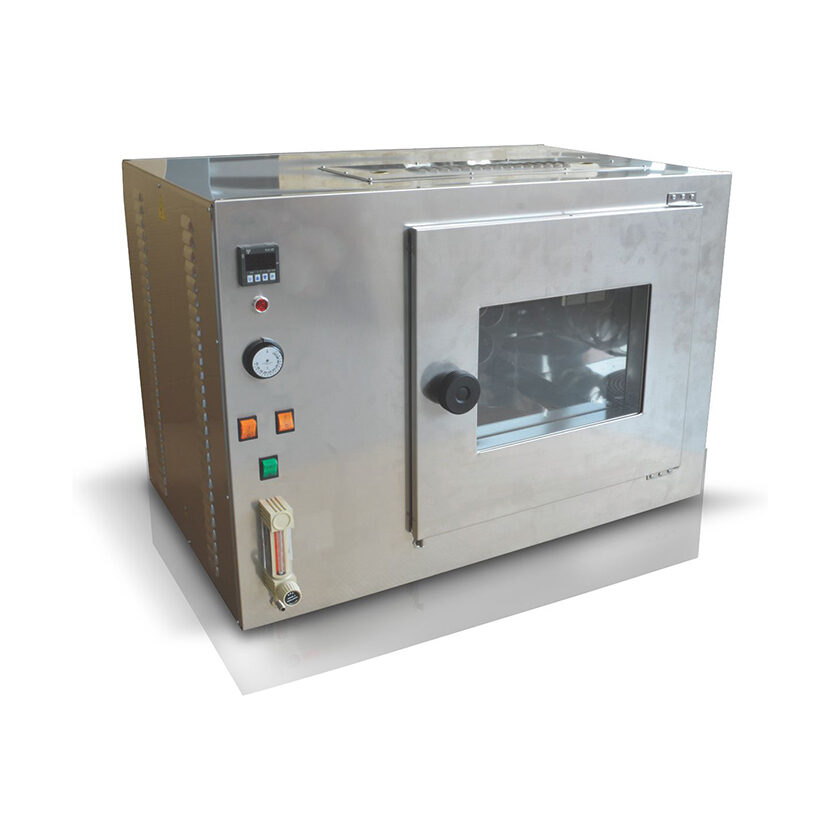

Asphalt Testing Equipment's > Rolling Thin Film Oven (A-030/RTFO)
- Used to determine the effects of heat and air on a moving film of semi-solid asphaltic materials.
- The effects of this treatment are determined from measurements of the selected properties of the asphalt before and after the test.
- Internal chamber and external frame are made of stainless steel.
- Double wall insulation is made of fiberglass and the door is double glazed.
- The door has large glass for inspection during the test.
- Equipped with safety thermostat to prevent accidental over-heating.
- Clear, transparent, heat-resistant glass containers are supplied with the oven.
- Should be connected to a suitable air pressure supply (can be ordered separately).
Technical Specifications
Supplied With
- Made of Stainless Steel
- Door with Large Window for Inspection
- Power Supply: 220 - 240 V / 50 or 60 Hz (110 V / 60 Hz is also available)
- Digital thermostat to maintain 163°C (325°F) temperature
- Control Thermometer
- Ventilation Device
- Glass Containers / Sample Bottles (8 ea)
- Safety Thermostat
- Pilot Light Heat Indicator
